Automatically Control Magnetic Stripe Laying Machine Reliable Operation YMSL-1000

Brand Name : YL

Model Number : YMSL-1000

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, Western Union, D/P, D/A, Western Union

Supply Ability : 1 set per 45 days

Delivery Time : 40-45days

Packaging Details : 1 plywood case

Power supply : AC 380V/50 HZ

Air resource : 6 kg/c㎡(dry)

Power : 8.5KW

Temperature : 0-400℃(adjustable)

Temp. precision : ±0.5℃

Mag. stripe laying precision : ±0.15mm

Weight : Approximately 800Kg

Productivity : 10-12m/min (film roll) or 1000-1300 sheets/h (sheet)

Mag. stripe model : ISO/IEC7811 HiCo/LoCo

Mag. stripe width : 12.7mm / 6.35mm, wheel diameter: 380mm

Mag. stripes Qty. : 5~8 tapes optional

Layout : 3X8, 4X8, 5X5 (optional)

Operator number : 1

Dimension : L2850×W1200×H1800mm

Applicable materials : Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm

Contact Now

Automatic Magnetic Stripe Laying Machine YMSL-1000

1. Functional Introduction of Automatic Magnetic Stripe Laying Machine YMSL-1000

The machine is designed to lay the magnetic stripe onto the plastic sheets or film rolls (such as PVC and PET) by heating and pressurizing in a precise and firm way. It has three material feeding and collection modes: roll-to-sheet, roll-to-roll or sheet-to-sheet. The whole process can realize automatic operation to ensure stable and reliable operation. It can lay both ordinary and transferable magnetic stripe.

2. Key futures of Automatic Magnetic Stripe Laying Machine YMSL-1000

1. The system is automatically controlled by PLC program with friendly man-machine interface;

2. Sheet feeding, speed and film moving length are controlled by servo motor;

3. Rolling wheel clamping devices are applied to ensuring neat and precise mounting of magnetic stripe. The air cylinder pressure is adjustable; Automatic tension control system is applied in material feeding to ensure that the film roll conveying is kept smooth and even in tension.

4. The film cutting unit is driven by air cylinder to ensure reliable operation;

5. Magnetic stripe back foil can be automatically collected by waste system.

6. Air shaft loading system is applied to make loading and unloading of film roll easier and more convenient;

7. The heating temperature control is by heating tube with imported temperature probe and temperature control module for accurate temperature control (±0.5℃).

8. Each single magnetic stripe laying head can be adjusted in temperature and pressure.

3. Technical Parameter of Automatic Magnetic Stripe Laying Machine YMSL-1000

Main Technical Parameters

Power supply	AC 380V/50 HZ	Mag. stripe model	ISO/IEC7811 HiCo/LoCo
Air resource	6 kg/c㎡(dry)	Mag. stripe width	12.7mm / 6.35mm, wheel diameter: 380mm
Power	8.5KW	Mag. stripes qty.	5~8 tapes optional
Temperature	0-400℃(adjustable)	Layout	3X8, 4X8, 5X5 (optional)
Temp. precision	±0.5℃	Operator number	1
Mag. stripe laying precision	±0.15mm	Dimension	L2850×W1200×H1800mm
Weight	Approximately 800KG	Applicable materials	Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm
Productivity	10-12m/min (film roll) or 1000-1300 sheets/h (sheet)

Product Tags:

8.5KW magnetic stripe laying machine

auto magnetic strip laying machine

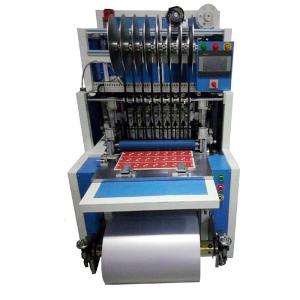

China Automatically Control Magnetic Stripe Laying Machine Reliable Operation YMSL-1000 wholesale
