Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout
1. Introduction of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout
Automatic Magnetic Stripe Bonding Machine YASB-1 is designed for laying and bonding the magnetic stripe onto the coated overlay or printed PVC sheet in a accurate and speedy way. It is controlled by PLC system and adopts a smart touching screen. The clamp clips the tap and the card at the same time. Material is fed automatically by quality servo motor. The magnetic stripe laying and bonding can be realized at the same time. Flexible choice of card material layout is available (such as 3×8, 4×8 and 5×5).
2. Features of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout
1). The machine design is compact and easy in operation.
2). The maximum 8 magnetic strips can be bonded at same time.
3). All the bonding spots are welded at the same time, which can ensure tidy and beautiful finish.
4). It is automatically controlled in operation by PLC, and automatic error alarm is available.
5). Bonding point position, bonding time and temperature are adjustable.
6). It features reasonable design for transmission and cutting of magnetic strips, which can minimize the waste of magnetic stripes.
| Power source | AC 380V/50 HZ | Stripe type | Accord with ISO/IEC7811 high density and lower density magnetic stripe |
| Air source | 6 kg(no water) | Stripe width | 12.7mm 6.35mm plate dia.380mm |
| Total power | 8.5KW | Stripe amount | 5~8 PCS |
| Temperature control range | 0-400ºC(can be set) | Available sheet | 3X8,4X8,5X5(with choice) |
| Temperature control precision | ±2ºC | Operator | 1 person |
| Laying precision | ±0.15mm | Overall dimension | L1560xW800xH1500mm |
| Weight | Approx.200Kg | Available material | Film sheet:thickness0.25~0.8mm,
width: 580mm,
Coil film: thickness 0.04-0.2mm:
Inner diameter:3inches;outer diameter less than20 inches[500mm]; width: 580mm |
3. Technical parameter of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout
| Machine Model | YASB-1 |
| Power supply | AC 220V 50HZ 2.5KW |
| Air pressure | 6kg/cm3 square |
| Size of work table | L520xW500mm |
| Production capacity | 400-650 plates/hour |
| Bonding point position precision | ±0.1mm |
| Control method | PLC program + servo system |
| Operator | 1 person |
| Weight | 200kg Approx |
| Overall dimension | L1560xW800xH1500mm |
4. Application of Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout
Automatic Magnetic Stripe Bonding Machine Servo Motor YASB-1 for PVC Sheet 3×8, 4×8 layout is also called Automatic Magnetic Stripe Bonding Machine YASB-1 Card magnetic stripe bonding machine, magnetic stripe laying machine, magnetic stripe applicator, magnetic stripe pasting machine, card machine, smart card machine
Product Tags:
|
|

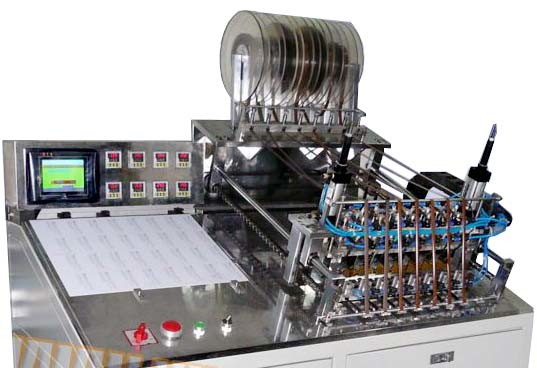

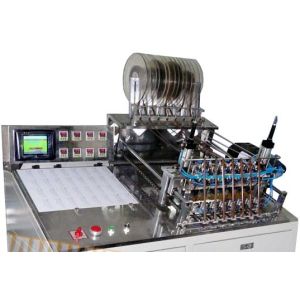

Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout Images
|
